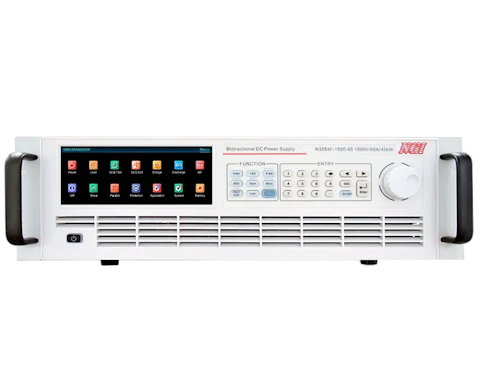

N35100 시리즈

양방향 프로그래머블 DC 전원공급장치

N35100 시리즈는 양방향 프로그래머블 DC 전원공급장치입니다.
듀얼 쿼드런트 설계로 전력을 공급하고 흡수할 수 있으며, 전력을 깨끗하게 그리드로 되돌려 보내 전력 소비와 열 방출 공간을 줄여 시험 비용을 크게 절감합니다.
고정밀 측정과 다양한 시험 기능을 제공해 신에너지, 자동차, ESS, 전기 구동, 배터리 시뮬레이션 등 다양한 산업에 폭넓게 활용됩니다.

  • Voltage

    ±40V, 80V

  • Current

    ±55A~170A

  • Power

    ±2500~7500W

목록으로

Main Features




  • Power Range: 2.5kW/5kW/7.5kW
  • Voltage Range: 40V/80V; Current Range: ±55A/±110A/±170A/...±300A
  • Compact design with high power density, 7500W integrated in 1U chassis
  • Two quadrants seamless switching, the current between the DUT and the grid flow bidirectional
  • Battery simulation, SEQ test, Charge/Discharge test supportable
  • CC, CV, CR and CP mode
  • Supporting PV matrix I-V curve simulation function
  • CC/CV priority
  • Adjustable voltage and current slew rate
  • 3.2-inch HD color screen to display information
  • LAN/RS232/RS485/CAN as standard
  • Modbus-RTU/CAN open/SCPI standard protocol supportable​



· Power Range: 2.5kW/5kW/7.5kW

· Voltage Range: 40V/80V; Current Range: ±55A/±110A/±170A/...±300A

· Compact design with high power density, 7500W integrated in 1U chassis

· Two quadrants seamless switching, the current between the DUT and the grid flow bidirectional

· Battery simulation, SEQ test, Charge/Discharge test supportable

· CC, CV, CR and CP mode

· Supporting PV matrix I-V curve simulation function

· CC/CV priority

· Adjustable voltage and current slew rate

· 3.2-inch HD color screen to display information

· LAN/RS232/RS485/CAN as standard

· Modbus-RTU/CAN open/SCPI standard protocol supportable​​
