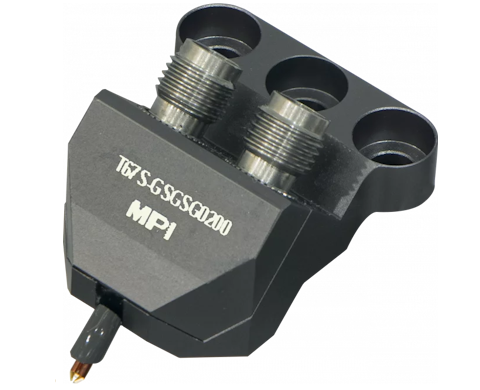

67GHz Dual Probe (T67S)

Introducing the Dual TITAN™ Probes from MPI Corporation
a groundbreaking innovation in precision measurement technology.
These probes are a testament to our commitment to excellence, merging the renowned features of our single-ended probes with advanced dual probe capabilities.
Designed for a range of applications from wireless to mmWave technologies, the Dual TITAN™ Probes set a new standard in measurement accuracy, reliability, and versatility, making them indispensable in modern testing and characterization.

  • Characteristic Impedance

    50 Ω

  • Frequency range

    DC to 67GHz

  • Connector

    V (1.85 mm), female (two)

  • Pitch range

    50 to 250 μm with 25 μm step

  • Tip configuration

    GSGSG

  • Connectors style

    45-degree, straight
