Compact Modelling

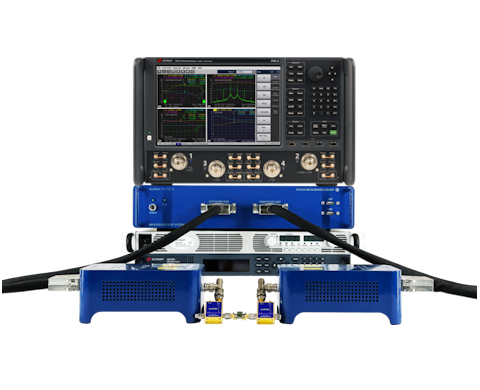

The Focus Compact Model (FCM) utility is a streamlined software package designed to be used with Focus’ AURIGA high-end Pulsed-IV system



Features & Benefits

The Focus Compact Model (FCM) utility is a streamlined software package designed to be used with Focus’ AURIGA high-end Pulsed-IV system, that is used to generate Compact Models for transistors from their Pulsed-IV and wideband pulsed s-parameter data.

This is achieved by generating a network of lumped circuit elements that represent accurately the fundamental linear & non-linear behavior of the device over a broad range of bias and power range.

The result of the modelling is a netlist and compatible with- the most common CAD tools used in RF Design; such as AWR Microwave office (MWO) and Keysight PathWave Advanced Design System (ADS).​



Setup

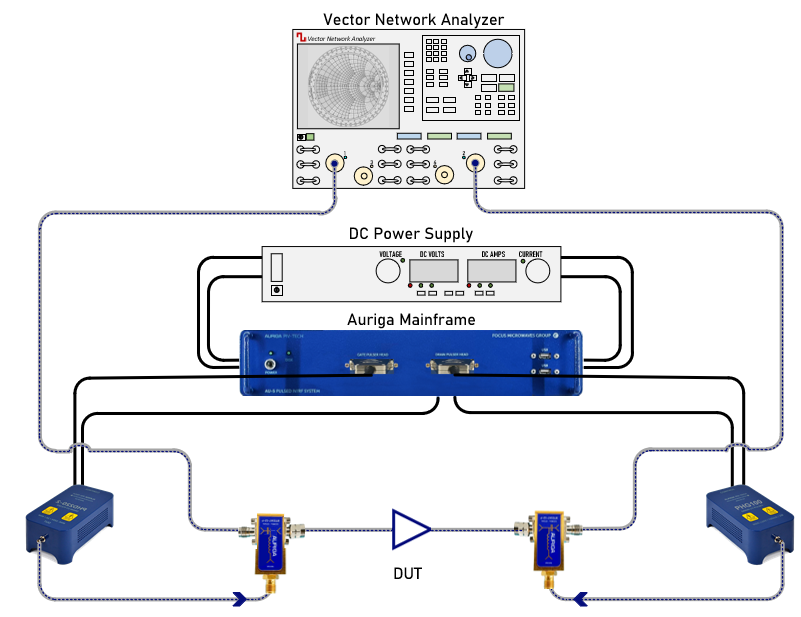

Pulsed S-Parameter Setup



​The purpose of electrical representation or equivalent circuit of HEMT or any transistor in the form of lumped circuit elements is to implement and simulate its static and RF behavior in CAD tools. This technique is particularly useful and often directly correlated to physical entities within the device structure, as illustrated below.

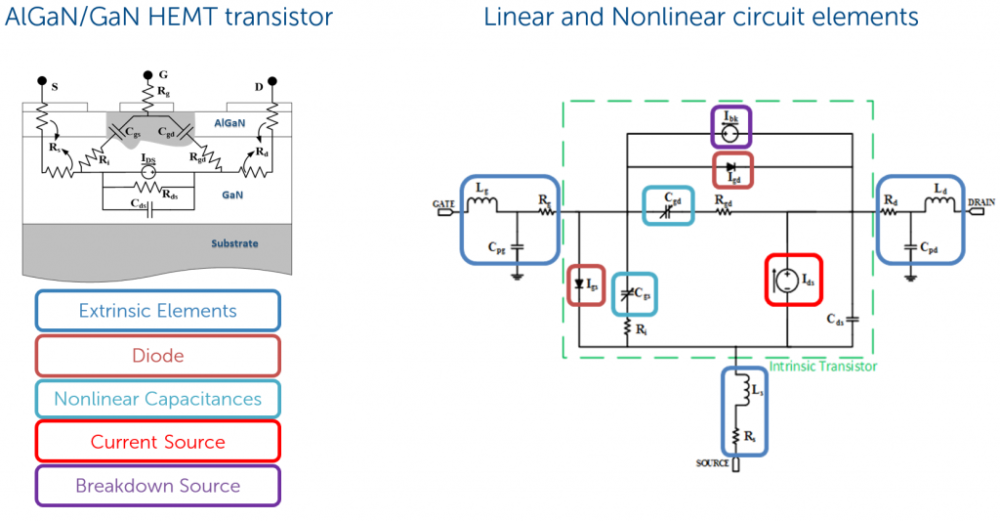

The illustration below is a small signal topology composed of a total of 16 linear components.



This is divided into two parts:



i) The Intrinsic part where the region under the gate (modulation occurs here) represented with a set of 8 intrinsic elements (RGD, Ri, CGS, CGD, CDS, GM, RDS, Τ).

ii) The Extrinsic part represented with a set of 8 extrinsic elements (RG, RD, RS, LG, LD, LS, CPG, CPD). These elements need to be extracted for small signal model implementation. The extraction process will be discussed in the following section.
