AC-5

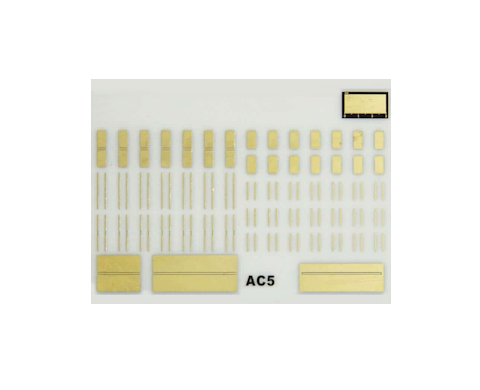

AC-5 calibration substrate is designed to provide accurate probe tip calibration of MPI TITAN™ RF probe family with
ground-signal-ground (GSG), ground-signal (GS) and signal-ground (SG) probe tips configuration and accommodates 250 to 1250 µm probe pitch variation.

  • Material

    Alumina

  • Size

    22.5 mm x 15 mm

  • Probe configuration

    GSG, GS and SG

  • Supported probe pitch

    250 to 1250 µm

  • Number of lumped standard groups

    GSG:7, GS:7, SG:7

  • Supported calibration methods

    SOLT, LRM, TRL and multiline TRL
