AC-3

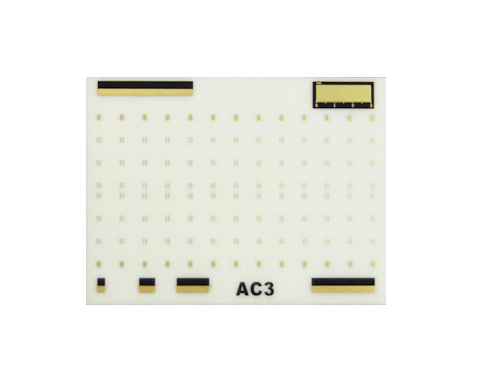

AC-3 calibration substrate is designed to provide accurate probe tip calibration of MPI TITAN™ RF probe family with
ground-signal (GS) and signal-ground (SG) probe tips configuration and can accommodates 50 to 250 µm probe pitch
variation.

  • Material

    Alumina

  • Size

    16.5 mm x 12.5 mm

  • Probe configuration

    GS and SG

  • Supported probe pitch

    50 to 250 µm

  • Number of lumped standard groups

    26

  • Supported calibration methods

    SOLT, LRM
