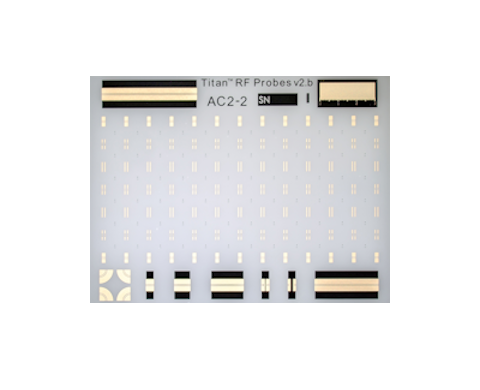

AC2-2

The AC2-2 calibration substrate is designed to provide accurate probe tip calibrations of MPI TITAN™ RF probes with groundsignal-ground (GSG) probe tips configuration and accommodates 100 to 250 µm probe pitches variation.

  • Material

    Alumina

  • Size

    16.5 x 12.5 mm

  • Probe configuration

    GSG

  • Supported probe pitch

    100 to 250 µm

  • Number of lumped standard groups

    26

  • Supported calibration methods

    SOLT, LRM, SOLR, TRL and multiline TRL
