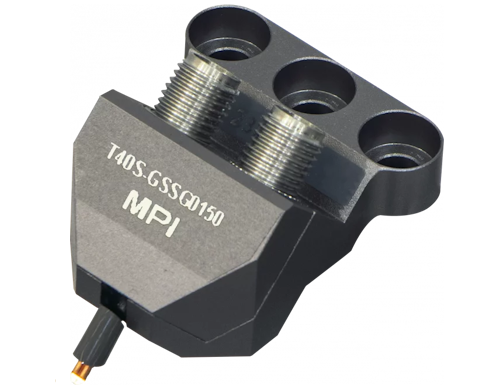

40GHz Dual Probe (T40S)

Introducing the Dual TITAN™ Probes from MPI Corporation
a groundbreaking innovation in precision measurement technology.
These probes are a testament to our commitment to excellence, merging the renowned features of our single-ended probes with advanced dual probe capabilities.
Designed for a range of applications from wireless to mmWave technologies, the Dual TITAN™ Probes set a new standard in measurement accuracy, reliability, and versatility, making them indispensable in modern testing and characterization.

  • Characteristic Impedance

    50 Ω

  • Frequency range

    DC to 40GHz

  • Connector

    Connector: K (2.92mm), female (two)

  • Pitch range

    GSGSG: 50 to 325 µm, GSSG/SGS: 50 to 250 µm

  • Tip configurations

    GSSG, SGS, GSGSG

  • Connectors style

    45-degree, straight
