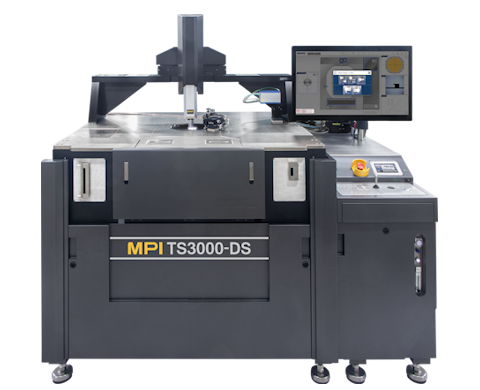

Designed for Silicon Photonics Device Testing

• Dual sided device testing, top & bottom

• Supports O-O, E-O, O-E, E-E device types

• Integrated Z-distance calibration guarantees accurate probe to device distance

• Temperature device cycling from ambient to +150°C

Optical Setup

• Hexapod+NanoPositioner combination, for high precision and ultra-fast fiber probe alignment

• Grating and Edge fiber probe coupling

• East and West configurations

• Double sided, top & bottom

Electrical Setup

• Probe card in 4.5 inch width format

• DC and RF MicroPositioners

• Single sided, top

• Optional high-pin count support, up to 35kg force

Ergonomic Design and Footprint

• Easy wafer or single DUT loading from the front

• Integrated active vibration isolation

• Intelligent integrated prober control, for fast and accurate operation

• Optional test instrumentation shelf enables short cable routing, supporting high frequency applications
