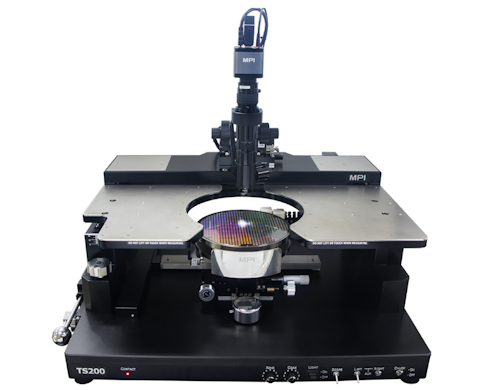

TS200
200mm Manual Probe System
For accurate and reliable DC/CV, RF and High Power measurements
-
Wafer size
8 inch
-
Total travel range
240 x 315mm (9.4 x 12.4 in)
-
Planarity
< 10 µm
-
Theta travel
360°
-
Movement
Puck controlled air bearing stage
Universal Use
• Designed for wide variety of applications such as RF and mmW, Device Characterization, Wafer Level Reliability, High Power, Failure Analysis, IC Engineering and MEMS
Ergonomic Design
• Unique puck controlled air bearing stage for quick single-handed operation
• Rigid platen accommodates up to 10 DC or 4 RF positioners
• Highly repeatable platen lift design with three discrete positions for contact, separation, and loading
Upgradability
• Available with various chuck options and wide range of accessories such as DC/RF/mmW MicroPositioners, Optics, microscopes and
EMI shielded dark box to support various application requirements
